Removal [11/2023 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [10/2022 - ]
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 10
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 4
- REMOVE INSTRUMENT PANEL FINISH END PANEL LH
Refer to PROCEDURE - Step 5
- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE TRIP SWITCH
Refer to PROCEDURE - Step 5
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE NO. 1 SWITCH HOLE BASE
Refer to PROCEDURE - Step 20
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL
for 8 Inch Display:
Refer to PROCEDURE - Step 3
for 12.3 Inch Display:
Refer to PROCEDURE - Step 9
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 25
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 28
- REMOVE INSTRUMENT PANEL FINISH END PANEL RH
Refer to PROCEDURE - Step 29
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 30
- REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 31
- REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 39
- REMOVE FRONT CONSOLE BOX INSERT
Refer to PROCEDURE - Step 41
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Refer to PROCEDURE - Step 42

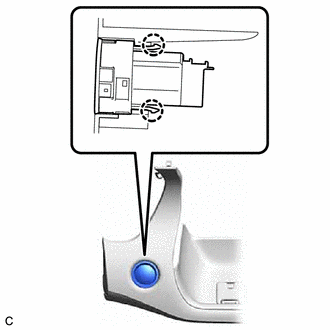

- REMOVE POWER SWITCH
