Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (2GR-FKS) - Diagnostic Codes (6 Of 6) & Circuit Tests (1 Of 2) >> SFI System >> DTC P21CF-13: Cylinder 1 Injector "B" Circuit Open; DTC P21D0-13: Cylinder 2 Injector "B" Circuit Open; DTC P21D1-13: Cylinder 3 Injector "B" Circuit Open; DTC P21D2-13: Cylinder 4 Injector "B" Circuit Open; DTC P21D3-13: Cylinder 5 Injector "B" Circuit Open; DTC P21D4-13: Cylinder 6 Injector "B" Circuit Open [12/2019 - 10/2022] >> Wiring Diagram

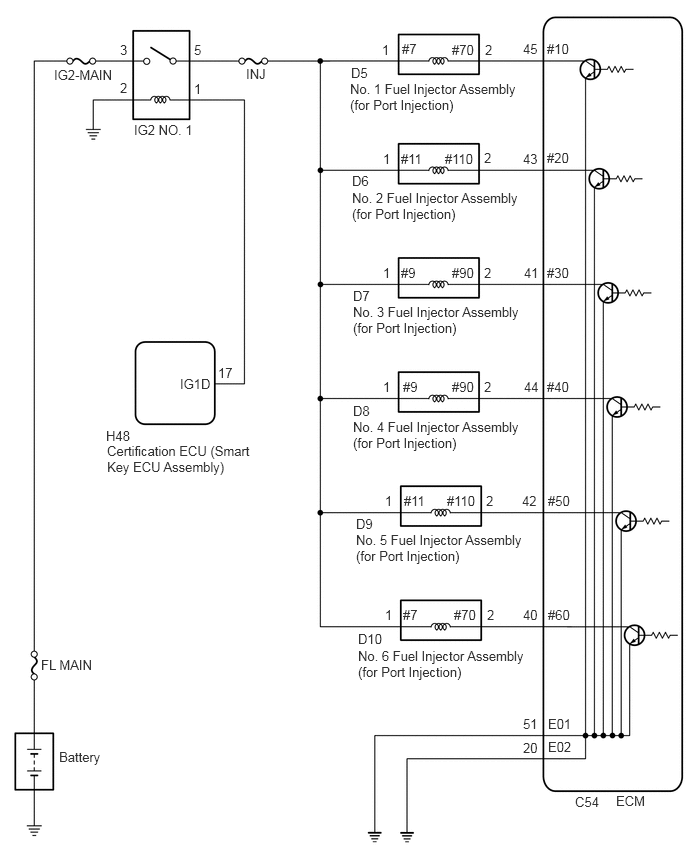

DTC P21CF-13: Cylinder 1 Injector "B" Circuit Open; DTC P21D0-13: Cylinder 2 Injector "B" Circuit Open; DTC P21D1-13: Cylinder 3 Injector "B" Circuit Open; DTC P21D2-13: Cylinder 4 Injector "B" Circuit Open; DTC P21D3-13: Cylinder 5 Injector "B" Circuit Open; DTC P21D4-13: Cylinder 6 Injector "B" Circuit Open [12/2019 - 10/2022]: Wiring Diagram

GTY939970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
