Engine Control System (2GR-FKS) - Diagnostic Codes (6 Of 6) & Circuit Tests (1 Of 2)
>>
SFI System
>>
ECM Power Source Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

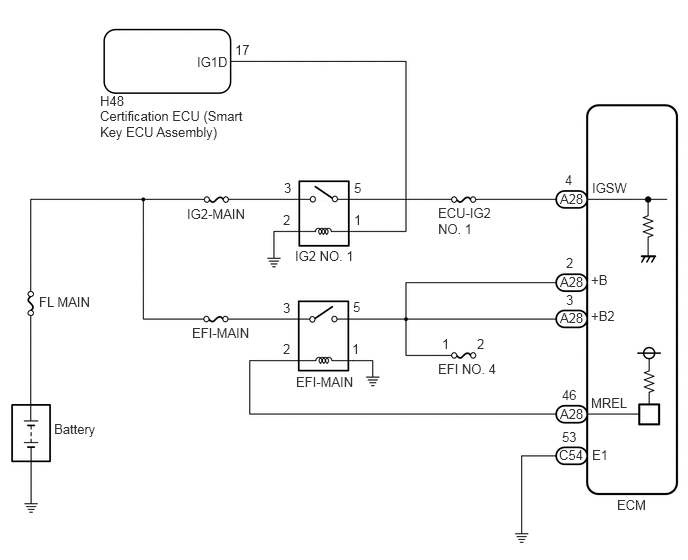

ECM Power Source Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
