Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL PURGE VALVE (PURGE VSV)
    1. Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

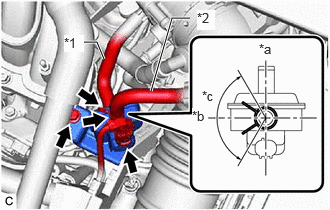

      GTY901746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 Fuel Vapor Feed Hose
      *a RH Side
      *b Front
      *c 120°
    2. Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
    3. Connect the fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.

      HINT:

      Engage the clip within the area shown in the illustration.

    4. Connect the purge valve (purge VSV) connector.
  2. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 52 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 52 [09/2020 - 10/2022]
