Removal [12/2019 - 09/2020]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020]

  3. REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY
    1. Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.

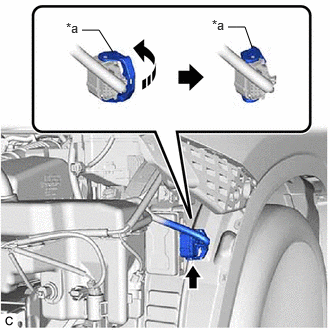

      GTY873637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
    2. Remove the bolt, nut and eco run vehicle converter assembly.

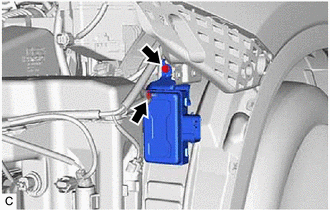

      GTY902775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 CONVERTER CONTROL BRACKET
    1. Remove the 2 bolts and No. 1 converter control bracket from the eco run vehicle converter assembly.
      GTY902774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
