Installation [12/2019 - 09/2020]: Procedure

  1. INSTALL NO. 1 CONVERTER CONTROL BRACKET
    1. Install the No. 1 converter control bracket to the eco run vehicle converter assembly with the 2 bolts.

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  2. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY
    1. Install the eco run vehicle converter assembly with the bolt and nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

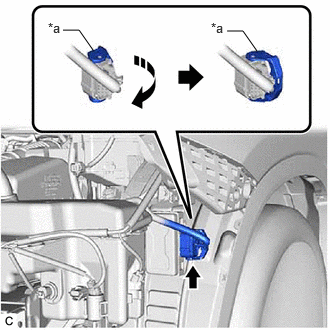

    2. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock the connector.
      GTY890656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever
  3. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [12/2019 - 09/2020]

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2
