VC Output Circuit [12/2019 - ]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM [12/2019 - 11/2023] , or refer to WIRING DIAGRAM [11/2023 - ]

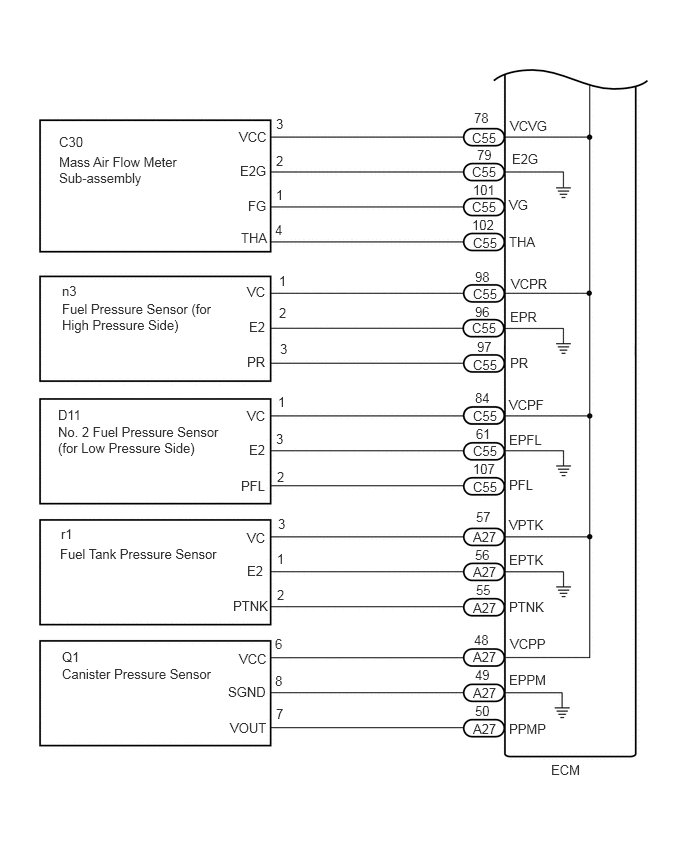

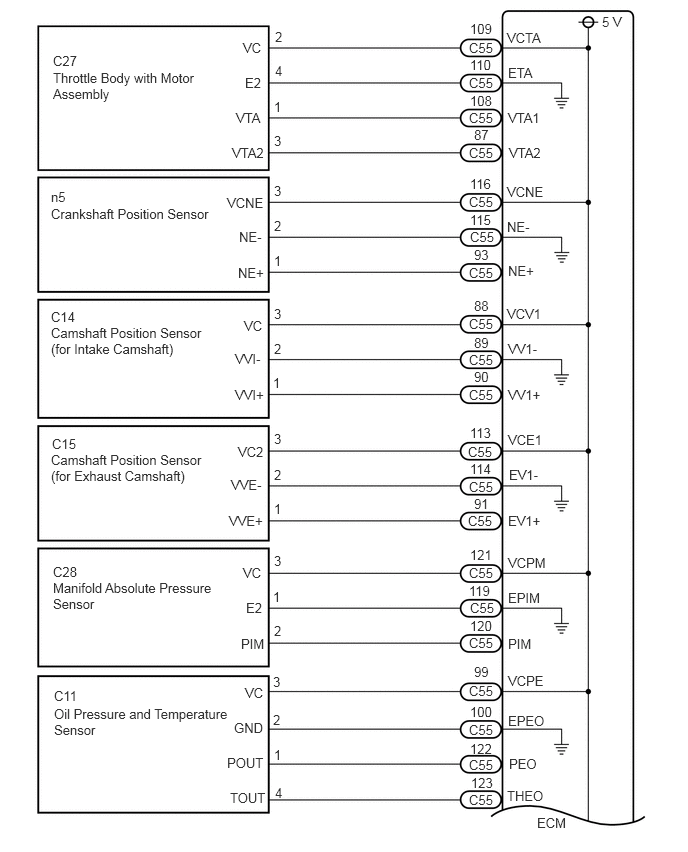

- VC Output Circuit
