Removal [10/2022 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  2. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

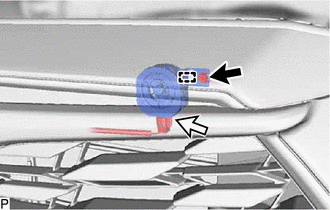

    1. Remove the bolt.
      GTY877856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the connector to remove the vehicle approaching speaker assembly.
