DTC P1C84-49: High Voltage Power Resource Circuit Short during Ready ON [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC OUTPUT (HYBRID CONTROL, MOTOR GENERATOR)
    1. Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Powertrain > Motor Generator > Trouble Codes

      Result

      Result Proceed to
      P1C84-49 only is output, or P0A95-63 and DTCs except the ones in the table below are also output. A
      DTCs of Hybrid Control System in the tables below are output. B
      DTCs of Motor Generator Control System in the tables below are output. C
      P0A95-63 is also output. D
      Malfunction Content System Relevant DTC
      Microcomputer malfunction Hybrid Control System P0A1B-49 Drive Motor "A" Control Module Internal Electronic Failure
      P0606-47 Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure
      P0AFC-00 Hybrid/EV Battery Sensor Module
      Motor Generator Control System P0A1B-1F Generator Control Module Circuit Intermittent
      P0A1A-47 Generator Control Module Watchdog / Safety MC Failure
      P0A1A-49 Generator Control Module Internal Electronic Failure
      P1C2A-1C Generator A/D Converter Circuit Circuit Voltage Out of Range
      P1C2A-49 Generator A/D Converter Circuit Internal Electronic Failure
      P3133-83 Communication Error from Generator to Drive Motor "A" Value of Signal Protection Calculation Incorrect
      P3133-86 Communication Error from Generator to Drive Motor "A" Signal Invalid
      Power source circuit malfunction Hybrid Control System P0AFC-16 Hybrid/EV Battery Sensor Module Circuit Voltage Below Threshold
      Motor Generator Control System P06D6-1C Generator Control Module Offset Power Circuit Voltage Out of Range
      Communication system malfunction Hybrid Control System P3123-87 Lost Communication with Drive Motor Control Module "A" from Hybrid/EV Control Module Missing Message
      U029A-87 Lost Communication with Hybrid/EV Battery Sensor Module Missing Message
      Motor Generator Control System P3133-87 Communication Error from Generator to Drive Motor "A" Missing Message
      Sensor and actuator circuit malfunction Hybrid Control System P0ABF-00 Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance
      P0ABF-11 Hybrid/EV Battery Current Sensor "A" Circuit Short to Ground
      P0ABF-15 Hybrid/EV Battery Current Sensor "A" Circuit Short to Auxiliary Battery or Open
      P0ABF-28 Hybrid/EV Battery Current Sensor "A" Signal Bias Level Out of Range / Zero Adjustment Failure
      P0ABF-2A Hybrid/EV Battery Current Sensor "A" Signal Stuck In Range
      P0AD9-11 Hybrid/EV Battery Positive Contactor Circuit Short to Ground
      P0AD9-15 Hybrid/EV Battery Positive Contactor Circuit Short to Auxiliary Battery or Open
      P0ADD-11 Hybrid/EV Battery Negative Contactor Circuit Short to Ground
      P0ADD-15 Hybrid/EV Battery Negative Contactor Circuit Short to Auxiliary Battery or Open
      Motor Generator Control System P0D2D-16 Drive Motor "A" Inverter Voltage Sensor (VH) Circuit Voltage Below Threshold
      P0D2D-17 Drive Motor "A" Inverter Voltage Sensor (VH) Circuit Voltage Above Threshold
      System malfunction Hybrid Control System P0D2D-1C Drive Motor "A" Inverter Voltage Sensor Voltage Out of Range
      P0E31-1C Boosting Converter Voltage Sensor "A" Voltage Out of Range
      P1C83-49 High Voltage Power Resource Circuit Voltage Sensor after Boosting Malfunction
      P1C2D-62 Hybrid/EV Battery "A" Voltage Sensor/Boosting Converter Voltage Sensor "A" Signal Compare Failure
      P3000-16 Hybrid/EV Battery Control System Circuit Voltage Below Threshold
      P3004-49 High Voltage Power Resource Circuit Short during Pre-Charge
      Motor Generator Control System P1CB6-9E Drive Motor "A" Inverter Voltage Sensor (VH) Stuck On
      P0CA3-00 DC/DC Converter Step Up Voltage Performance

      HINT:

      • P1C84-49 may be output as a result of the malfunction indicated by the DTCs above.
        1. The chart above is listed in inspection order of priority.
        2. Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
    2. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2019 - 09/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2020 - 10/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [10/2021 - 11/2023]

    Result:

    C

    GO TO DTC CHART (MOTOR GENERATOR CONTROL SYSTEM)  . Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2019 - 10/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [10/2021 - 11/2023]

    Result:

    D

    GO TO DTC CHART (P0A95-63)

    Refer to DTC P0A95-63: High Voltage Fuse Accumulated Load History [12/2019 - 11/2023]

    Result:

    A

    See step  2

  2. CLEAR DTC

    Refer to PROCEDURE - Step 3

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  3

  3. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. With the vehicle stopped, apply the parking brake and turn the ignition switch to ON (READY).
      NOTE:

      Perform this test with the AUTO function (shift-linked function) of the electric parking brake system off.

      HINT:

      • If the ignition switch could not be turned to ON (READY), turn the ignition switch off and check for DTCs after turning the ignition switch to ON (READY) again.
      • Because P3004-49 uses 2 trip detection logic, the DTC detection conditions need to be met 2 times.
      • When the parking brake indicator (red) is illuminated after the electric parking brake switch assembly has been pulled to the lock side, the maximum amount of braking force is applied if the electric parking brake switch assembly is pulled to the lock side one more time.
    2. Ensure the safety of the areas in front and at the back of the vehicle.
    3. Move the shift lever to D and depress both the accelerator pedal and brake pedal at the same time.

      HINT:

      Depressing both the accelerator pedal and brake pedal at the same time causes the HV battery current to flow and ensures that there is no problem with the high-voltage wiring.

    4. Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      P1C84-49 is output, or no DTCs are output. A
      Ignition switch could not be turned to ON (READY) and DTC P3004-49 is output. B
    5. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (P3004-49)

    Refer to DTC P3004-49: High Voltage Power Resource Circuit Short during Pre-Charge [12/2019 - 11/2023]

    Result:

    A

    See step  4

  4. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

    Refer to PROCEDURE - Step 1

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  5

  5. CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)

    Refer to PROCEDURE - Step 5

    Result

    Result Proceed to
    OK A
    NG (The connector is not connected securely.) B
    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  6

  6. CHECK CONNECTOR CONNECTION CONDITION (HV BATTERY JUNCTION BLOCK ASSEMBLY CONNECTOR)

    Refer to PROCEDURE - Step 8

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the No. 10 HV battery shield panel.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    3. Disconnect the M56 HV battery junction block assembly connector.
    4. Disconnect the A32 hybrid vehicle control ECU connector.
    5. Measure the resistance according to the value(s) in the table below.

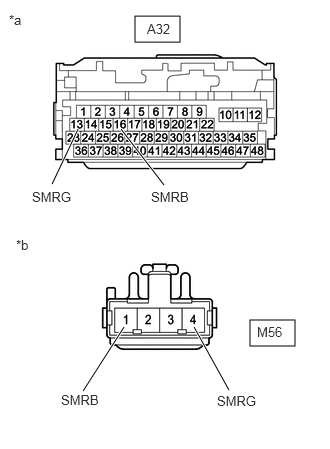

      GTY909055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)
      *b Front view of wire harness connector
      (to HV Battery Junction Block Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A32-16 (SMRB) - M56-1 (SMRB) Ignition switch off Below 1 Ω
      A32-13 (SMRG) - M56-4 (SMRG) Ignition switch off Below 1 Ω
    6. Reconnect the A32 hybrid vehicle control ECU connector.
    7. Reconnect the M56 HV battery junction block assembly connector.
    8. Install the No. 10 HV battery shield panel.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (HV BATTERY JUNCTION BLOCK ASSEMBLY - BODY GROUND)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Remove the No. 10 HV battery shield panel.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    3. Disconnect the M56 HV battery junction block assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M56-3 (GND) - Body ground Ignition switch off Below 1 Ω
      GTY842647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to HV Battery Junction Block Assembly)
    5. Reconnect the M56 HV battery junction block assembly connector.
    6. Install the No. 10 HV battery shield panel.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  10

  10. CHECK HYBRID VEHICLE CONTROL ECU (CHECK FOR NORMAL OPERATION)
    WARNING:

    Be sure to wear insulated gloves.

    1. Install the service plug grip.
    2. Clear the DTCs.

      Powertrain > Hybrid Control > Clear DTCs

    3. Turn the ignition switch off and wait for 2 minutes or more.
    4. Turn the ignition switch to ON (READY).
    5. According to the display on the GTS, read the Data List and monitor the values of "Hybrid Battery Voltage" and "VL-Voltage before Boosting" for 3 minutes.

      Powertrain > Hybrid Control > Data List

      Tester Display
      VL-Voltage before Boosting
      Hybrid Battery Voltage

      Result

      Result Proceed to
      Difference between "Hybrid Battery Voltage" and "VL-Voltage before Boosting" is always less than 50 V. A
      Difference between "Hybrid Battery Voltage" and "VL-Voltage before Boosting" is 50 V or more. B
    6. Turn the ignition switch off.

    Result:

    A

    END

    Result:

    B

    REPLACE HYBRID VEHICLE CONTROL ECU

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]
