Removal [12/2019 - 10/2022]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022]

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [12/2019 - 10/2022]

  4. REMOVE GENERATOR ASSEMBLY
    1. Open the terminal cap.

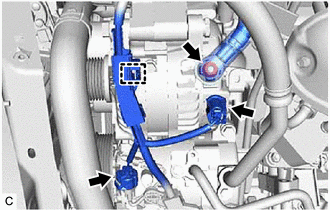

      GTY937203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the wire harness from terminal B.
    3. Disconnect the generator assembly connector.
    4. Disconnect the compressor assembly with magnetic clutch connector.
    5. Disengage the wire harness clamp.
    6. Type A:
      GTY888245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt.
    7. Type B:
      1. Remove the nut.

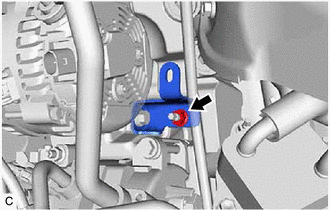

        GTY937219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 bolts and generator assembly.

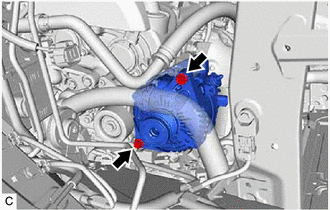

      GTY888294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the bolt and wire harness clamp bracket from the generator assembly.

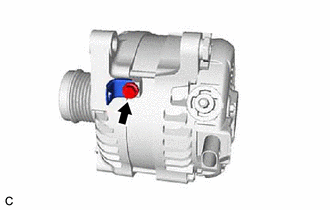

      GTY888296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the bolt and No. 1 generator bracket from the generator assembly.

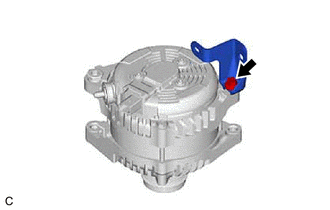

      GTY691470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
