Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 16 [09/2020 - 10/2022]

  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 10/2021] , or refer to PROCEDURE - Step 2 [10/2021 - 10/2022]

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

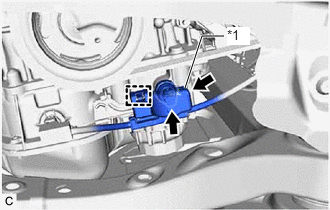

    1. Disengage the clamp to disconnect the wire harness protector.
      GTY765569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Protector
    2. Disconnect the engine oil pressure switch assembly connector.

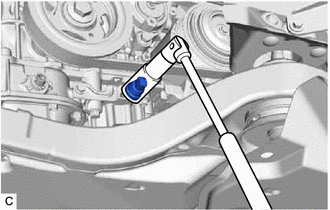

    3. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY761250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
