DTC P322F-11: Communication Error from Airbag to Generator Circuit Short to Ground [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC OUTPUT (SRS AIRBAG)
    1. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      Airbag system DTCs are not output. A
      Airbag system DTCs are output. B
    2. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (AIRBAG SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2019 - 10/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [10/2021 - 11/2023]

    Result:

    A

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)

    Refer to PROCEDURE - Step 3

    Result

    Result Proceed to
    OK A
    NG (The connector is not connected securely.) B
    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  3

  3. CHECK CONNECTOR CONNECTION CONDITION (AIRBAG SENSOR ASSEMBLY CONNECTOR)
    1. Check the connector connections and contact pressure of the relevant terminals for the airbag sensor assembly connector.

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [12/2019 - ]

      GTY940019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Airbag Sensor Assembly)

      OK

      The connectors are connected securely and there are no contact pressure problems.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  4

  4. CHECK INVERTER WITH CONVERTER ASSEMBLY
    1. Disconnect the H58 airbag sensor assembly connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.
      GTY854875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      H58-24 (GSW2) - Body ground Ignition switch ON 11 to 14 V
      NOTE:

      Turning the ignition switch to ON with the airbag sensor assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the ignition switch off.
    5. Reconnect the H58 airbag sensor assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  5

  5. REPLACE AIR BAG SENSOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  6

  6. CLEAR DTC
    1. Clear the DTCs.

      Powertrain > Motor Generator > Clear DTCs

    2. Turn the ignition switch off.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  7

  7. CHECK DTC OUTPUT (MOTOR GENERATOR)
    1. Check for DTCs.

      Powertrain > Motor Generator > Trouble Codes

      Result

      Result  Proceed to
      P322F-11 is not output. A
      P322F-11 is output. B
    2. Turn the ignition switch off.

    Result:

    A

    COMPLETED

    Result:

    B

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

  8. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - AIRBAG SENSOR ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair information because this may cause a malfunction.

    2. Disconnect the A55 inverter with converter assembly connector.
    3. Disconnect the H58 airbag sensor assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Open)

      Tester Connection Condition Specified Condition
      A55-18 (ABFS) - H58-24 (GSW2) Ignition switch off Below 1 Ω

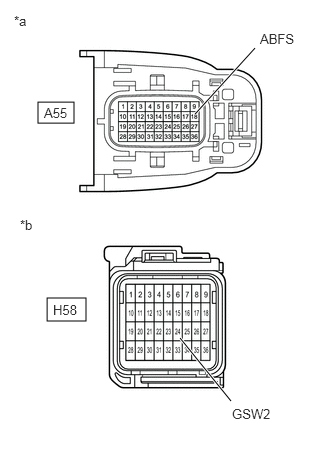

      GTY866595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)

      Standard Resistance (Short)

      Tester Connection Condition Specified Condition
      A55-18 (ABFS) or H58-24 (GSW2) - Body ground and other terminals Ignition switch off 10 kΩ or higher
    5. Reconnect the H58 airbag sensor assembly connector.
    6. Reconnect the A55 inverter with converter assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
