Removal [11/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE BATTERY SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for T24A-FTS:

    Refer to PROCEDURE - Step 2

    for A25A-FXS:

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

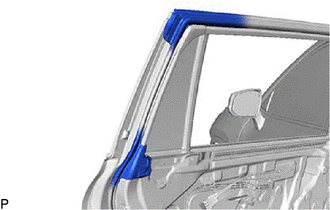

  7. DISCONNECT REAR DOOR WEATHERSTRIP
    1. Disconnect the rear door weatherstrip.
      GTY898083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 16

  9. REMOVE QUARTER WINDOW UPPER STOP

    Refer to PROCEDURE - Step 18

  10. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 19

  11. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 20

  12. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  13. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  14. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY

    Refer to PROCEDURE - Step 25

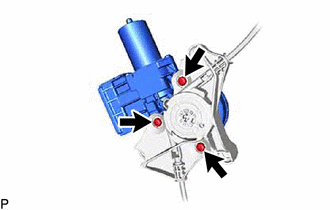

  15. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY
    1. Using a T25 "TORX" socket wrench, remove the 3 screws and power window regulator motor assembly.
      GTY939374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
