Removal [12/2019 - ]: Procedure

  1. DRAIN DIFFERENTIAL OIL

    for Dynamic Torque Control AWD: Refer to PROCEDURE - Step 1

    for Dynamic Torque Vectoring AWD: Refer to PROCEDURE - Step 2

  2. REMOVE TEMPERATURE SENSOR

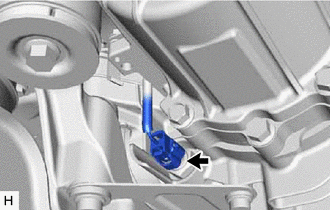

    1. Disconnect the temperature sensor connector.
      GTY918175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

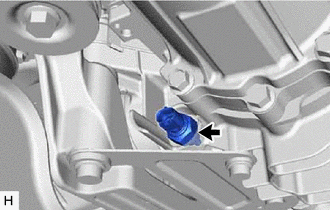

    2. Using a 22 mm deep socket wrench, remove the temperature sensor and gasket.
      GTY918174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
