Removal [10/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    except Sport Package:

    Refer to REMOVAL [09/2020 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    for Sport Package:

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

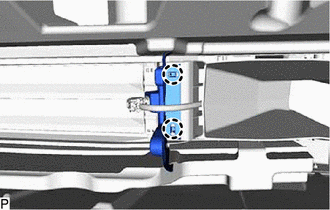

    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY1110645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

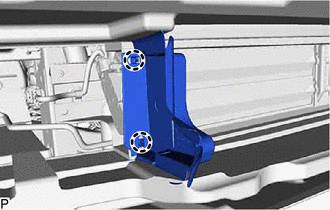

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY1117951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

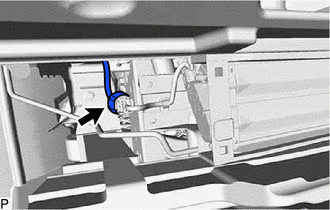

    1. Disconnect the connector.
      GTY1110641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

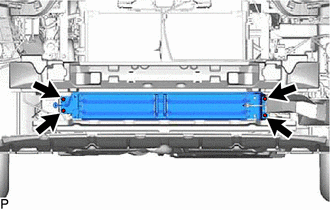

    2. Remove the 4 nuts and radiator shutter sub-assembly.
      GTY1117950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
