Installation [12/2019 - 10/2022]: Procedure

1. Temporarily install the park/neutral position switch assembly to the automatic transaxle case sub-assembly with the 2 bolts.
   NOTE:

   Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be installed correctly.

2. Temporarily install the transmission control shaft lever to the manual valve lever shaft sub-assembly.
3. Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

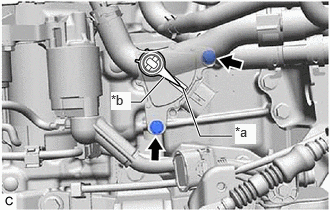

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	P
   *b	N

4. Remove the transmission control shaft lever from the manual valve lever shaft sub-assembly.
5. Align the protrusion with the neutral basic line.

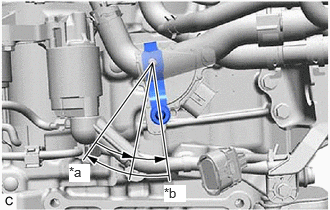

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Neutral Basic Line
   *b	Protrusion

6. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

7. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the washer and nut.

   Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

8. Connect the park/neutral position switch assembly connector.
9. Engage the wire harness clamp.

1. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket and install a new clip.
2. Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

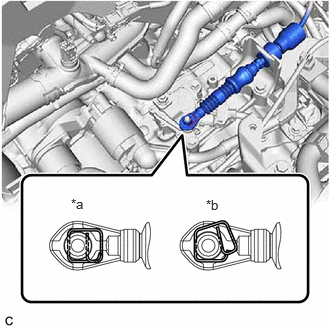

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Correct
   *b	Incorrect

   NOTE:

   Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

Refer to PROCEDURE - Step 45 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 45 [09/2020 - 10/2022]

Refer to INSTALLATION [12/2019 - 09/2020] , or refer to INSTALLATION [09/2020 - 10/2022]

Refer to INSTALLATION [12/2019 - 10/2022]

See step  2

See step  2

Refer to ADJUSTMENT [12/2019 - 10/2022]
