Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  6. REMOVE EV DRIVE MODE SWITCH (PATTERN SELECT SWITCH ASSEMBLY)

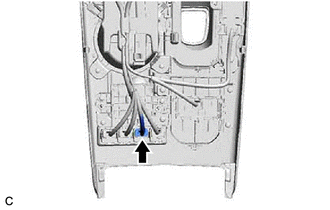

    1. Disconnect the EV drive mode switch (pattern select switch assembly) connector.
      GTY880441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

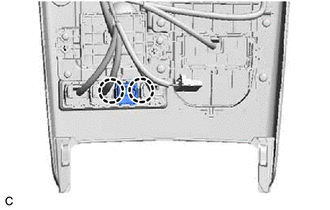

    2. Disengage the 2 claws and remove the EV drive mode switch (pattern select switch assembly) from the console panel sub-assembly.
      GTY902784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TRAIL SWITCH (PATTERN SELECT SWITCH)

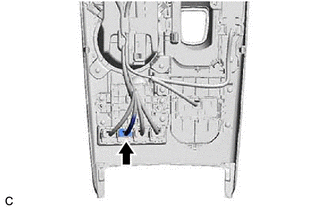

    1. GTY902787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the trail switch (pattern select switch assembly) connector.

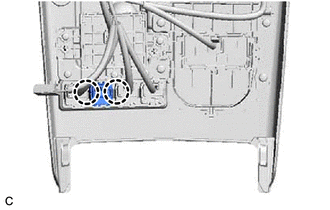

    2. GTY902783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and remove the trail switch (pattern select switch assembly) from the console panel sub-assembly.

  8. REMOVE DRIVE MODE SELECT SWITCH (NO. 1 PATTERN SELECT SWITCH ASSEMBLY)
    1. Disconnect the drive mode select switch (No. 1 pattern select switch assembly) connector.
      GTY917637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 4 screws and drive mode select switch (No. 1 pattern select switch assembly) from the console panel sub-assembly.
      GTY917636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
