Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 30 [11/2023 - ]

  2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

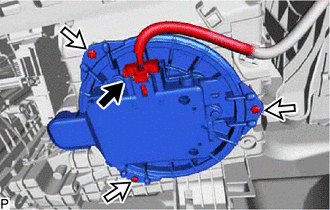

    1. Disconnect the connector.
      GTY923921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and blower motor with fan sub-assembly.
