Installation [10/2022 - ]: Procedure

  1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

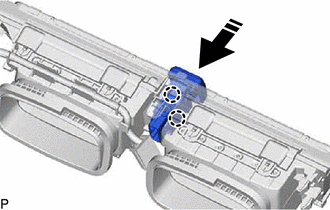

    1. Engage the 2 claws to install the hazard warning signal switch assembly as shown in the illustration.
      GTY939996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

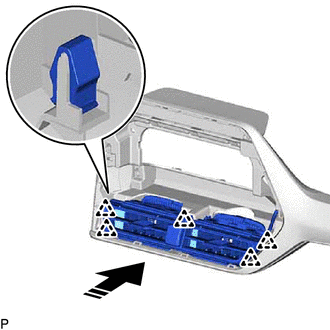

    1. Engage the 5 clips to install the No. 3 instrument panel register assembly as shown in the illustration.
      GTY944596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 20

  4. INSTALL RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 5

  5. INSTALL RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 11

  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23
