Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER (for HV Model)

    Refer to PROCEDURE - Step 2

  4. REMOVE ECU INTEGRATION BOX LH

    Refer to PROCEDURE - Step 4

  5. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

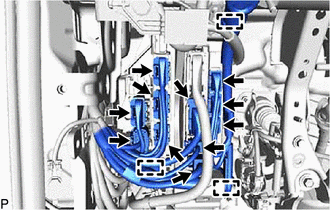

    1. Disconnect each connector.
      GTY923914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps.
    3. Disengage the 2 claws and pull down the 2 lock levers to disconnect the 2 connectors as shown in the illustration.
      GTY896064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Using a screwdriver, disengage the claw as shown in the illustration.
      GTY909320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Using a screwdriver, disengage the claw as shown in the illustration.
      GTY935052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    6. Disengage the 2 guides.
      GTY923908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts.
    8. Pull out the instrument panel junction block assembly with main body ECU.
    9. Disengage the clamp.
      GTY923907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

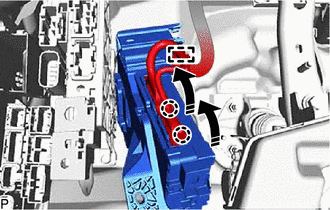

    10. Disengage the clamp.
      GTY846348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    11. Disengage the 2 claws and raise the 2 lock levers to disconnect the 2 connectors as shown in the illustration and remove the instrument panel junction block assembly with main body ECU.
  6. REMOVE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
    1. Press the claw of the instrument panel junction block assembly as shown in the illustration to release the lock.
      GTY863394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Instrument Panel Junction Block Assembly
      *2 Main Body ECU (Multiplex Network Body ECU)
      Push in this Direction
    2. With the instrument panel junction block assembly lock released, insert a screwdriver with its tip wrapped with protective tape horizontally between the main body ECU (multiplex network body ECU) and instrument panel junction block assembly.
      GTY877736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert in this Direction
      Remove in this Direction
      NOTE:
      • Use a screwdriver with a diameter between 5.0 mm (0.197 in.) and 6.3 mm (0.248 in.) and a length of approximately 90 mm (3.54 in.).
      • Do not insert the screwdriver under the connector socket of the main body ECU (multiplex network body ECU).
    3. Using the screwdriver, carefully raise the main body ECU (multiplex network body ECU) to the position where the connector becomes disconnected.
      NOTE:

      Do not twist the screwdriver to raise the main body ECU (multiplex network body ECU).

    4. Raise the main body ECU (multiplex network body ECU) as shown by the arrow (1), and then pull it out as shown by the arrow (2) in the illustration.
      GTY933978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Do not touch the main body ECU (multiplex network body ECU) connector.
