Installation [12/2019 - 10/2022]: Procedure

1. Place the front seat assembly RH in the cabin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the vehicle body.

2. Connect the front seat cushion airbag assembly RH connector under the front seat assembly RH.
   NOTE:

   • When connecting any airbag connector, take care not to damage the airbag wire harness.
   • When connecting the connector, make sure to push it straight in.
3. Connect the front seat airbag assembly connector under the front seat assembly RH.

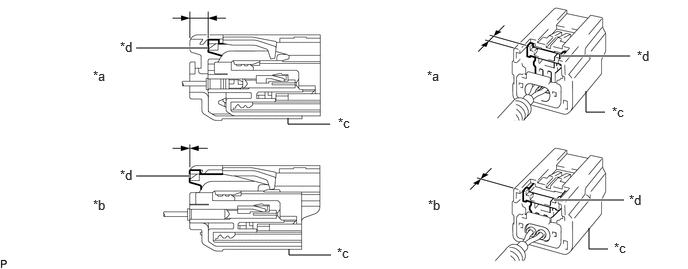

   1. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Correct	*b	Incorrect
      *c	Yellow CPA	*d	White Housing Lock

   2. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
      NOTE:

      • When connecting any airbag connector, take care not to damage the airbag wire harness.
      • When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.
4. Connect each connector and engage each clamp under the front seat assembly RH.
5. Temporarily install the front seat assembly RH with the 4 bolts.
6. Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.
7. Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly RH.

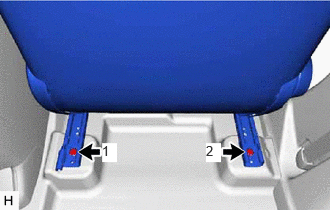

   Fig 1: Front Side Of Front Seat Assembly RH Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

   NOTE:

   Tighten the bolts in the order shown in the illustration.

8. Operate the seat track adjusting handle and move the front seat assembly RH to the foremost position.
9. Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly RH.

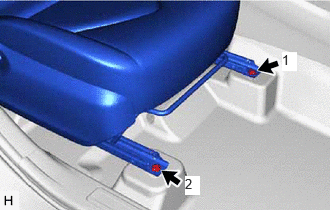

   Fig 2: Rear Side Of Front Seat Assembly RH Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

   NOTE:

   Tighten the bolts in the order shown in the illustration.

1. While performing a sliding operation of the front seat assembly RH, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly RH installation bolts and adjust the adjuster position.

1. Operate the seat track adjusting handle and move the front seat assembly RH to the foremost position.
2. Engage the 2 claws and guide to install the inner seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and guide to install the seat track cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.
2. Engage the 2 claws to install the front inner seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws to install the front outer seat track bracket cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front seat headrest assembly to the front seat assembly RH.

for HV Model: Refer to PROCEDURE - Step 2

for Gasoline Model: Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to OPERATION CHECK [12/2019 - ]

Refer to DTC CHECK / CLEAR [12/2019 - 11/2023]

Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - 11/2023]

Refer to OPERATION CHECK [12/2019 - 10/2022]
