Disassembly [12/2019 - ]: Procedure

  1. REMOVE HOOD TO RADIATOR SUPPORT SEAL

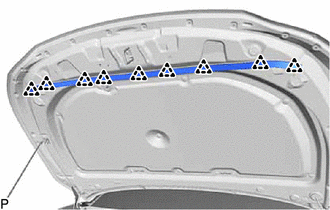

    1. Using a clip remover, disengage the 9 hood to radiator support seal clips to remove the hood to radiator support seal.
      GTY938037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 9 hood to radiator support seal clips from the hood to radiator support seal.
  2. REMOVE HOOD INSULATOR

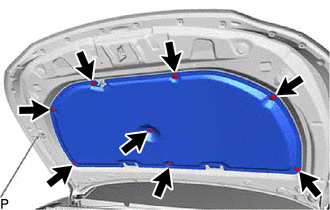

    1. Using a clip remover, remove the 8 hood insulator clips.
      GTY892049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

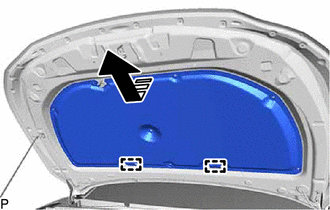

    2. Disengage the 2 guides to remove the hood insulator as shown in the illustration.
      GTY945240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. DISCONNECT WASHER HOSE ASSEMBLY

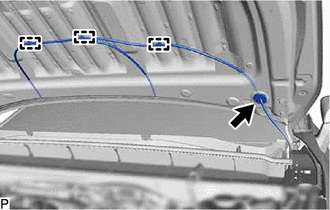

    1. Disengage the 3 clamps.
      GTY892043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet to disconnect the washer hose assembly.
  5. REMOVE HOOD STAY HOLDER

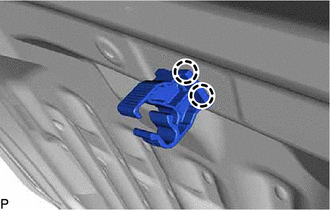

    1. Disengage the 2 claws to remove the hood stay holder.
      GTY892045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD SUPPORT ASSEMBLY

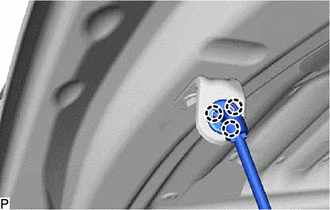

    1. Disengage the 3 claws to remove the hood support assembly.
      GTY892063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE HOOD STAY BRACKET

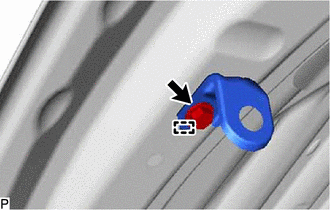

    1. Remove the bolt.
      GTY892061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the hood stay bracket.
