Adjustment [12/2019 - 09/2020]: Procedure

  1. INSPECT TIRES

    Refer to PROCEDURE - Step 1

  2. MEASURE VEHICLE HEIGHT

    See step  2

  3. INSPECT CAMBER
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Install a camber-caster-kingpin gauge.
      GTY439720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Camber-caster-kingpin Gauge
    2. Inspect the camber.

      Camber (Unloaded Vehicle)

      Model Camber Inclination Right-left Difference
      GSU70L-ARZNHA -0°35' +/- 0°45' (-0.58° +/- 0.75°) 0°45' (0.75°) or less
      GSU70L-ARZMHA -0°35' +/- 0°45' (-0.58° +/- 0.75°)
      GSU70L-ARZGHA -0°26' +/- 0°45' (-0.43° +/- 0.75°)
      GSU75L-ARZNHA -0°26' +/- 0°45' (-0.43° +/- 0.75°)
      GSU75L-ARZMHA -0°28' +/- 0°45' (-0.47° +/- 0.75°)
      GSU75L-ARZGHA -0°28' +/- 0°45' (-0.47° +/- 0.75°)
      AXUH70L-ARXNHA -0°28' +/- 0°45' (-0.47° +/- 0.75°)
      AXUH70L-ARXMHA -0°29' +/- 0°45' (-0.48° +/- 0.75°)
      AXUH70L-ARXGHA -0°29' +/- 0°45' (-0.48° +/- 0.75°)
      AXUH78L-ARXNHA -0°31' +/- 0°45' (-0.52° +/- 0.75°)
      AXUH78L-ARXMHA -0°32' +/- 0°45' (-0.53° +/- 0.75°)
      AXUH78L-ARXGHA -0°32' +/- 0°45' (-0.53° +/- 0.75°)

      HINT:

      Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

  4. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to N.
    3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)
    4. Put tread center marks on the rearmost points of the rear wheels and measure the distance between the marks (dimension B).
      GTY425632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tread Center Mark
      *b Dimension B
      Front of the Vehicle
    5. Slowly push the vehicle straight ahead to cause the rear wheels to rotate 180°. Use the rear tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step A again.

    6. Measure the distance between the tread center marks on the front of the rear wheels (dimension A).
      GTY427701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dimension A
      Front of the Vehicle

      Toe-in (Unloaded Vehicle)

      Model Specified Condition Right-left Difference
      GSU70L-ARZNHA C + D: 0°16' +/- 0°09' (0.26° +/- 0.15°) -
      B - A: 3.5 +/- 2.0 mm (0.138 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU70L-ARZMHA C + D: 0°16' +/- 0°09' (0.26° +/- 0.15°) -
      B - A: 3.5 +/- 2.0 mm (0.138 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU70L-ARZGHA C + D: 0°13' +/- 0°09' (0.22° +/- 0.15°) -
      B - A: 3.0 +/- 2.0 mm (0.118 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZNHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.0 +/- 2.0 mm (0.118 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZMHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZGHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXNHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXMHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXGHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXNHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXMHA C + D: 0°15' +/- 0°09' (0.25° +/- 0.15°) -
      B - A: 3.3 +/- 2.0 mm (0.13 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXGHA C + D: 0°15' +/- 0°09' (0.25° +/- 0.15°) -
      B - A: 3.3 +/- 2.0 mm (0.13 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified range, adjust it at the rear suspension toe adjust cam sub-assembly.

  5. ADJUST TOE-IN
    1. Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

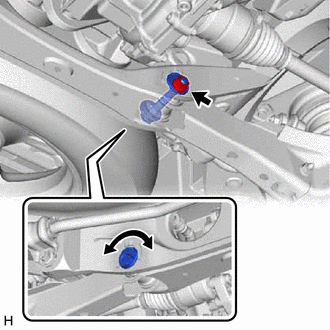

      GTY942372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.

      Toe-in (Unloaded Vehicle)

      Model Specified Condition Right-left Difference
      GSU70L-ARZNHA C + D: 0°16' +/- 0°09' (0.26° +/- 0.15°) -
      B - A: 3.5 +/- 2.0 mm (0.138 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU70L-ARZMHA C + D: 0°16' +/- 0°09' (0.26° +/- 0.15°) -
      B - A: 3.5 +/- 2.0 mm (0.138 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU70L-ARZGHA C + D: 0°13' +/- 0°09' (0.22° +/- 0.15°) -
      B - A: 3.0 +/- 2.0 mm (0.118 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZNHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.0 +/- 2.0 mm (0.118 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZMHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      GSU75L-ARZGHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXNHA C + D: 0°14' +/- 0°09' (0.23° +/- 0.15°) -
      B - A: 3.1 +/- 2.0 mm (0.122 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXMHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH70L-ARXGHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXNHA C + D: 0°14' +/- 0°09' (0.24° +/- 0.15°) -
      B - A: 3.2 +/- 2.0 mm (0.126 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXMHA C + D: 0°15' +/- 0°09' (0.25° +/- 0.15°) -
      B - A: 3.3 +/- 2.0 mm (0.13 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less
      AXUH78L-ARXGHA C + D: 0°15' +/- 0°09' (0.25° +/- 0.15°) -
      B - A: 3.3 +/- 2.0 mm (0.13 +/- 0.0787 in.) 2.0 mm (0.0787 in.) or less

      HINT:

      • Rotating the rear suspension toe adjust cam sub-assembly by one notch changes the toe by approximately 2.1 mm (0.0827 in.).
      • Perform adjustments so that the value is as close as possible to the median of the specified range.
      GTY483974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front of the Vehicle
    3. Tighten the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

  6. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  7. PERFORM ELECTRONICALLY CONTROLLED BRAKE SYSTEM CALIBRATION

    for HV Model: Refer to UTILITY [12/2019 - 11/2023]

    for Gasoline Model: Refer to UTILITY [12/2019 - 11/2023]
