Removal [12/2019 - ]: Procedure

Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

1. Apply protective tape around the rear combination light sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Pull the rear combination light sub-assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide
   	Separate in this Direction

   NOTE:

   To prevent the rear combination light sub-assembly from falling when disengaging the pin and 3 guides, make sure to hold the rear combination light sub-assembly.

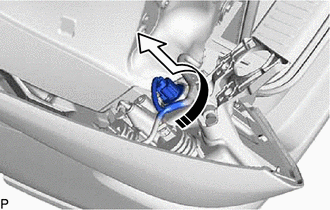

1. Turn the rear turn signal light socket with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disconnect in this Direction

2. Remove the rear turn signal light bulb from the rear turn signal light socket.
