Installation [12/2019 - ]: Procedure

  1. INSTALL BACK-UP LIGHT BULB
    1. Install the back-up light bulb to the rear light socket and wire.

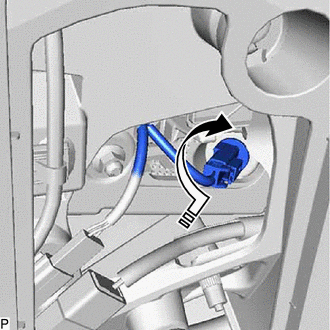

    2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to install them as a unit.
      GTY892227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 36
