Removal [12/2019 - 10/2022]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [12/2019 - 10/2022]
- REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER
Refer to PROCEDURE - Step 2
- REMOVE ECU INTEGRATION BOX LH
- Disconnect each connector.

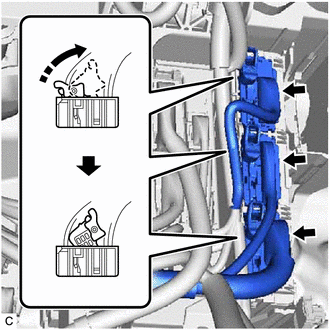

- Disconnect the 3 hybrid vehicle control ECU connectors as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

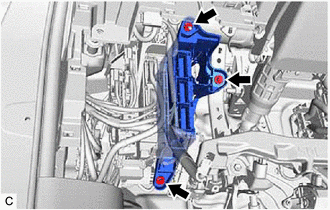

- Remove the nut, 2 bolts and ECU integration box LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE HYBRID VEHICLE CONTROL ECU

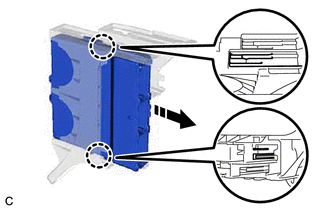

- Disengage the 2 claws and remove the hybrid vehicle control ECU from the ECU integration box LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
- If the ECU integration box LH is deformed or damaged, replace it.
- Do not bend the 2 claws more than necessary.
