Installation [12/2019 - ]: Procedure

  1. INSTALL REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Connect the connector.

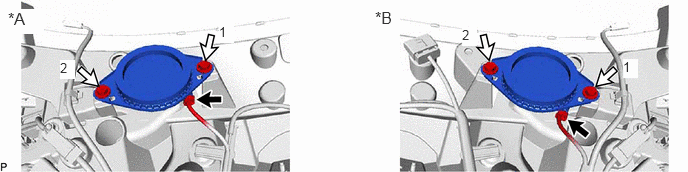

      Fig 1: Rear No. 3 Speaker Assembly Bolts Tightening Sequence
      GTY879988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side *B for LH Side
    2. Install the rear No. 3 speaker assembly with the 2 bolts.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

      HINT:

      Install the bolts in the order shown in the illustration.

  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 35

  3. INSTALL BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 36

  4. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.
