Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

    Refer to PROCEDURE - Step 34 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 33 [11/2023 - ]

  2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

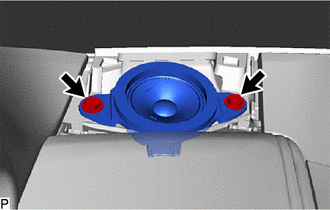

    1. Remove the 2 screws.
      GTY916530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
