Removal [11/2023 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 1 [11/2024 - ]

  3. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 2 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 2 [11/2024 - ]

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 3 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 3 [11/2024 - ]

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 4 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 4 [11/2024 - ]

  6. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET

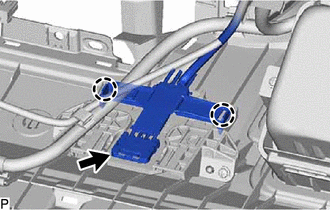

    1. Disconnect the connector.
      GTY916376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

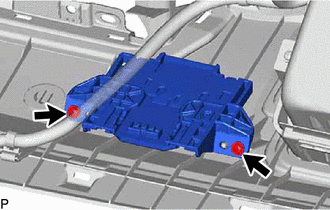

    2. Disengage the 2 claws.
    3. Remove the 2 screws and telephone and GPS antenna assembly with bracket.
      GTY916375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY

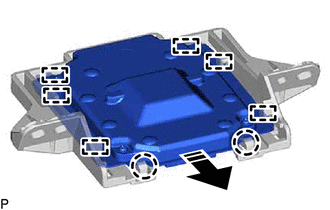

    1. Disengage the 2 claws and 6 guides to remove the telephone and GPS antenna assembly as shown in the illustration.
      GTY943962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE TELEPHONE AND GPS ANTENNA BRACKET
