Installation [12/2019 - ]: Procedure

  1. INSTALL TELEPHONE AND GPS ANTENNA BRACKET
  2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY

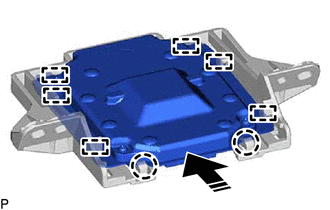

    1. Engage the 6 guides and 2 claws to install the telephone and GPS antenna assembly as shown in the illustration.
      GTY925753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET
    1. Install the telephone and GPS antenna assembly with bracket with the 2 screws.
    2. Engage the 2 claws.
    3. Connect the connector.
  4. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 13 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 12 [11/2024 - ]

  5. INSTALL DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 14 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 13 [11/2024 - ]

  6. INSTALL NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 15 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 14 [11/2024 - ]

  7. INSTALL NO. 4 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 16 [12/2019 - 11/2024] , or refer to PROCEDURE - Step 15 [11/2024 - ]

  8. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
