  1. INSTALL SEAT INNER BELT SUB-ASSEMBLY

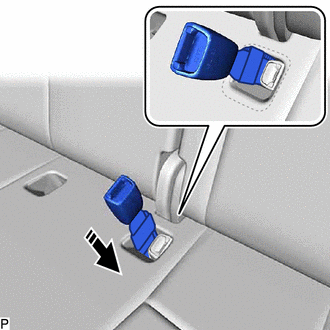

    1. Pass the seat inner belt sub-assembly through the rubber band of the rear seat cushion assembly as shown in the illustration.
      GTY909971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

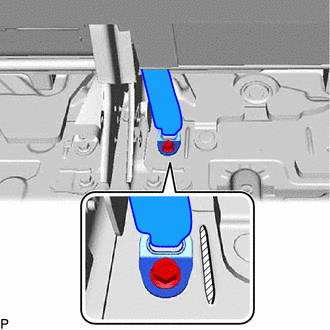

    2. Install the seat inner belt sub-assembly with the bolt.
      GTY900993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the seat inner belt sub-assembly to overlap the protruding part of the vehicle body.

    3. Connect the connector.
  2. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 67 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 65 [10/2022 - ]

  3. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - ]

  4. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 69 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 67 [10/2022 - ]

  5. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 70 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 68 [10/2022 - ]

  6. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 69 [10/2022 - ]
