DTC P0017-00: Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B; DTC P0019-00: Crankshaft Position - Camshaft Position Correlation Bank 2 Sensor B [12/2019 - 10/2022]: Procedure

1. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0017-00 or P0019-00 is output	A
   DTC P0017-00 or P0019-00 and other DTCs are output	B

   HINT:

   If any DTCs other P0017-00 or P0019-00 are output, troubleshoot those DTCs first.

Result:

B

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2019 - 09/2020]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2020 - 10/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2021 - 10/2022]

Result:

A

See step  2

HINT:

If the VVT system can be operated through the Active Test, it can be assumed that the VVT system is operating normally.

1. Start the engine.
2. Perform the Active Test. Check that the displacement angle varies.

   Powertrain > Engine > Active Test

   Active Test Display
   Control the Exhaust VVT OCV Duty Ratio Bank 1

   Data List Display
   Exhaust VVT Change Angle Bank 1

   Powertrain > Engine > Active Test

   Active Test Display
   Control the Exhaust VVT OCV Duty Ratio Bank 2

   Data List Display
   Exhaust VVT Change Angle Bank 2

   OK

   Displacement angle varies.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  3

1. Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

   HINT:

   Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.

   Refer to INITIALIZATION [12/2019 - 10/2022]

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  7

Result:

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

Refer to INSPECTION [12/2019 - 10/2022]

Result

Result:

NG

REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT). Refer to  REMOVAL [12/2019 - 10/2022]

Result:

OK

See step  5

• for Bank 1: Refer to INSPECTION [12/2019 - 10/2022]
• for Bank 2: Refer to INSPECTION [12/2019 - 10/2022]

Result

Result:

NG

REPLACE CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT])

• for Bank 1: Refer to REMOVAL [12/2019 - 10/2022]
• for Bank 2: Refer to REMOVAL [12/2019 - 10/2022]

Result:

OK

See step  6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

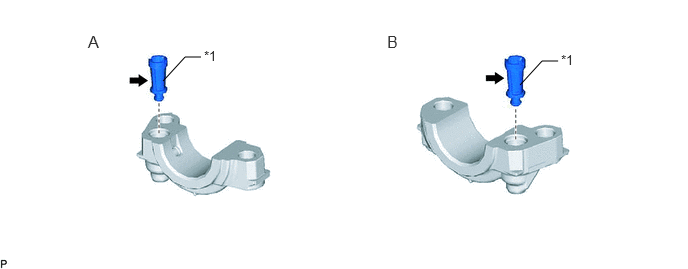

1. Remove the oil control valve filter (for exhaust camshaft of bank 1) or oil control valve filter (for exhaust camshaft of bank 2).
   • for Bank 1: Refer to PROCEDURE - Step 52
   • for Bank 2: Refer to PROCEDURE - Step 58
2. Check that the filter is not clogged.

   OK

   Filter is not clogged.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT)

• for Bank 1: Refer to PROCEDURE - Step 52
• for Bank 2: Refer to PROCEDURE - Step 58

Result:

OK

See step  7

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  8

1. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
2. Read the pending DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0017-00 or P0019-00 is output	B

Result:

A

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [12/2019 - 10/2022]

Result:

B

See step  9

Refer to REMOVAL [12/2019 - 10/2022]

HINT:

Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.

Refer to INITIALIZATION [12/2019 - 10/2022]

Result

Result:

NEXT

See step  10

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  11

1. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
2. Read the pending DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0017-00 or P0019-00 is output	B

Result:

A

END

Result:

B

REPLACE ECM. Refer to  REMOVAL [12/2019 - 09/2020]  , or refer to  REMOVAL [09/2020 - 10/2022]
