Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2019 - 10/2022]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  4. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2019 - 10/2022]

  5. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst) (for AWD)

    Refer to REMOVAL [12/2019 - 10/2022]

  6. REMOVE FUEL PUMP PROTECTOR

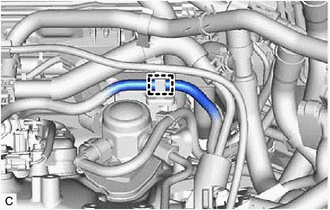

    1. Disengage the clamp to disconnect the fuel tube sub-assembly from the fuel pump protector.
      GTY887297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

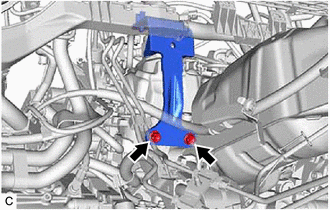

    2. Remove the 2 bolts and fuel pump protector from the cylinder head sub-assembly.
      GTY887298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY

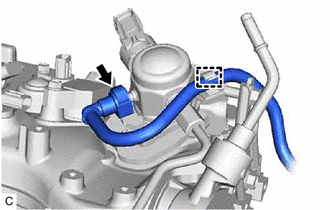

    1. Disengage the clamp and disconnect the No. 2 fuel tube sub-assembly from the fuel pump assembly.
      GTY739844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [12/2019 - 10/2022]

  8. REMOVE FUEL HOSE BRACKET

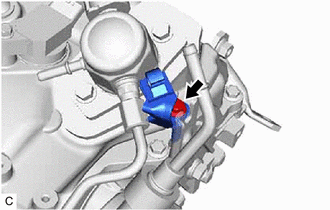

    1. Remove the bolt and fuel hose bracket from the cylinder head cover sub-assembly.
      GTY727093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

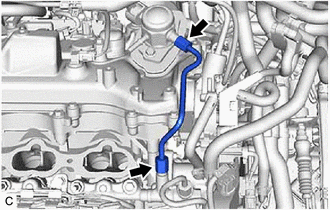

    1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      GTY887299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

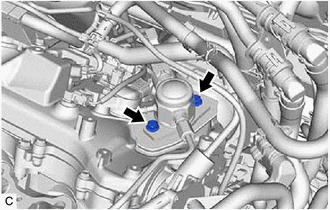

    2. Loosen the 2 bolts of the fuel pump assembly.
      GTY887301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe RH and fuel pump assembly.
  10. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

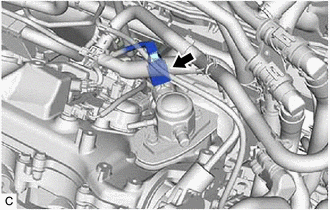

    1. Disconnect the fuel pump assembly connector.
      GTY887302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

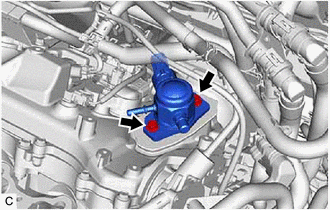

    2. Remove the 2 bolts, fuel pump assembly and fuel pump lifter guide from the cylinder head cover sub-assembly.
      GTY887303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the fuel pump assembly.
      GTY696253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

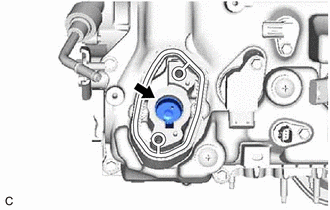

    4. Remove the fuel pump lifter assembly from the fuel pump lifter housing.
      GTY668397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

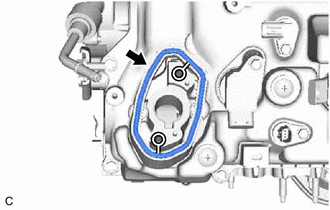

    5. Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.
      GTY668396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
