Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 7

  3. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 13

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 11 [10/2021 - 10/2022]

  6. REMOVE FRONT DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 31

  7. REMOVE NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 33

  8. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 35

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 36

  10. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 37

  11. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 38

  12. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 12

  13. REMOVE FUEL PUMP CONTROL ECU

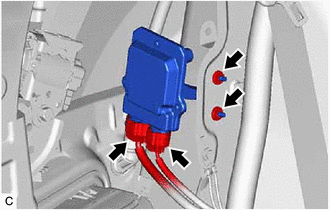

    1. Disconnect the 2 fuel pump control ECU connectors.
      GTY887288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

  14. REMOVE FUEL PUMP CONTROL ECU BRACKET

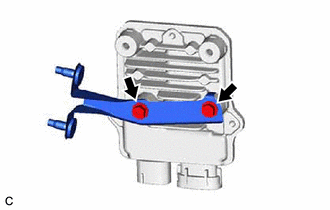

    1. Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
      GTY936986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
