Installation [12/2019 - 11/2023]: Procedure

  1. INSTALL ENGINE STOP AND START ECU

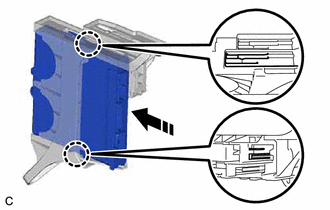

    1. Engage the 2 claws and install the engine stop and start ECU to the ECU integration box LH.
      NOTE:

      Make sure that the engine stop and start ECU is securely installed.

      GTY940403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ECU INTEGRATION BOX LH
    1. Install the ECU integration box LH with the 2 bolts and nut.
    2. Connect the 3 engine stop and start ECU connectors.
    3. Connect each connector.
  3. INSTALL ENGINE STOP & START SOLENOID FILTER

    See step  1

  4. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023]

  6. PERFORM INITIALIZATION

    Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 11/2023]
