Removal [11/2023 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [10/2022 - ]

  4. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12

  5. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  6. REMOVE FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH

    Refer to PROCEDURE - Step 3

  7. REMOVE FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH

    HINT:

    Perform the same procedure as for the LH side.

  8. REMOVE FRONT FENDER SPLASH SHIELD SEAL FRONT LH

    Refer to PROCEDURE - Step 5

  9. REMOVE FRONT FENDER SPLASH SHIELD SEAL FRONT RH

    HINT:

    Perform the same procedure as for the LH side.

  10. REMOVE FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  11. REMOVE FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  12. REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  13. REMOVE DASH PANEL HEAT INSULATOR

    Refer to PROCEDURE - Step 23

  14. REMOVE BRAKE TUBE BRACKET
    1. Disengage the 2 clamps from the brake tube bracket.

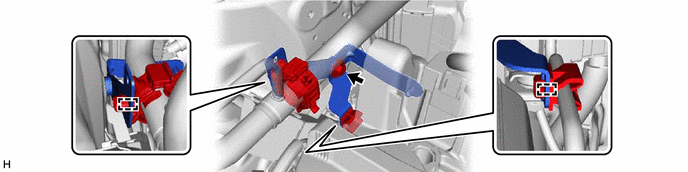

      GTY1113765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and brake tube bracket.
  15. REMOVE BRAKE ACTUATOR WITH BRACKET

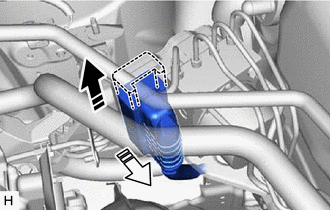

    1. Release the lock lever and disconnect the connector from the brake actuator assembly.
      GTY1116902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Release the lock lever
      Disconnect the connector
      NOTE:

      Be careful not to allow any brake fluid to enter the connector.

    2. Remove the 2 bolts to separate the brake lines.

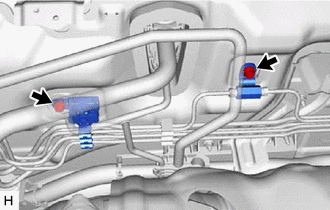

      GTY1113795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

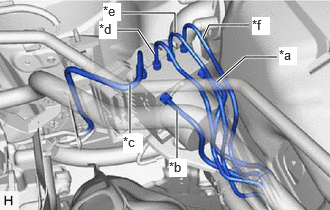

    3. Use tags or make a memo to identify the places to reconnect the brake lines.
      GTY1116559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a From 1st Chamber of Brake Master Cylinder Sub-assembly
      *b From 2nd Chamber of Brake Master Cylinder Sub-assembly
      *c To Front Wheel Cylinder Assembly RH
      *d To Rear Wheel Cylinder Assembly LH
      *e To Rear Wheel Cylinder Assembly RH
      *f To Front Wheel Cylinder Assembly LH
    4. Using a union nut wrench, disconnect the 6 brake lines from the brake actuator assembly.

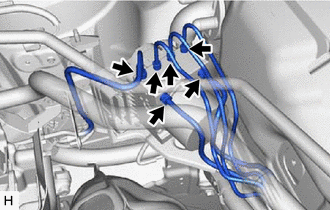

      GTY1113797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

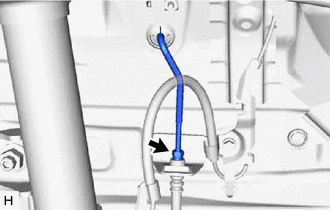

    5. Using a union nut wrench, disconnect the front brake tube while holding the front flexible hose with a wrench.
      GTY912130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the front brake tube.
      • Do not allow any foreign matter such as dirt or dust to enter the front brake tube from the connecting parts.
    6. Move aside the front brake tube as shown in the illustration.

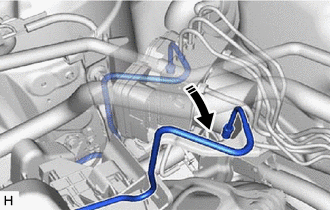

      GTY1113796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply excessive force to the front brake tube.

    7. Apply protective tape to the vehicle body as shown in the illustration.

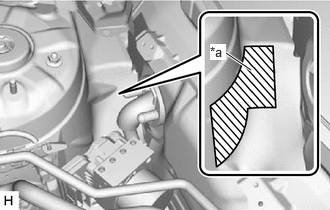

      GTY1118626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    8. Remove the 2 bolts.

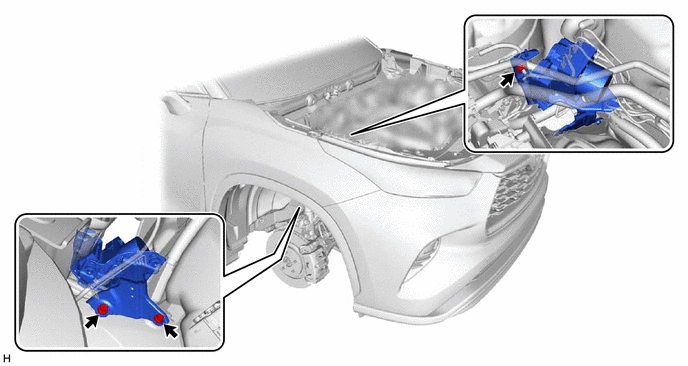

      GTY1113789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Insert the tool from the bottom of the vehicle.

    9. Remove the nut and brake actuator with bracket.
      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
      • Be careful not to allow any brake fluid to enter the connector.
      • Do not hold the brake actuator with bracket by the connector.
      • Do not drop the brake actuator with bracket when carrying it.

      HINT:

      Remove the brake actuator with bracket while avoiding the brake lines.

  16. REMOVE BRAKE ACTUATOR ASSEMBLY
    1. Remove the 3 bolts and brake actuator assembly from the brake actuator bracket assembly.

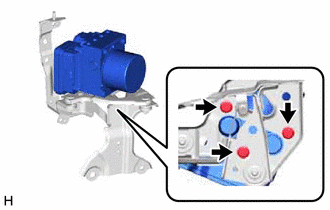

      GTY912108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not hold the brake actuator assembly by the connector.
      • Do not drop the brake actuator assembly when carrying it.
  17. REMOVE NO. 2 BRAKE ACTUATOR CASE COLLAR

    HINT:

    Perform this procedure only when replacement of the No. 2 brake actuator case collars is necessary.

    1. Remove the 3 nuts.

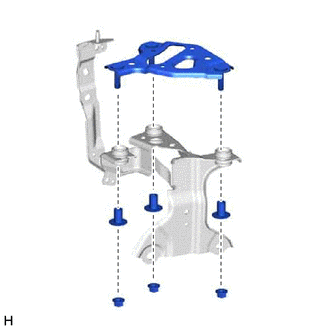

      GTY912109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 No. 2 brake actuator case collars from the brake actuator bracket cushion.
  18. REMOVE BRAKE ACTUATOR BRACKET CUSHION

    HINT:

    Perform this procedure only when replacement of the brake actuator bracket cushions is necessary.

    1. Remove the 3 brake actuator bracket cushions from the brake actuator bracket assembly.
      GTY942484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
