Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    for P810: Refer to PROCEDURE - Step 1

    for UA80E: Refer to PROCEDURE - Step 1

    for UA80F: Refer to PROCEDURE - Step 1

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)

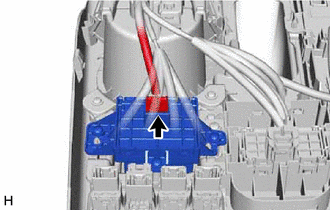

    1. Disconnect the connector from the brake hold switch (electric parking brake switch assembly).
      GTY942517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

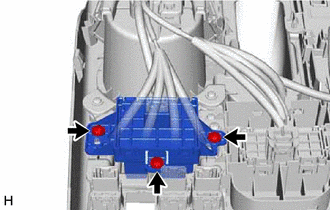

    2. GTY912253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 screws and brake hold switch (electric parking brake switch assembly) from the console panel sub-assembly.
