Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE DOWNHILL ASSIST CONTROL SWITCH

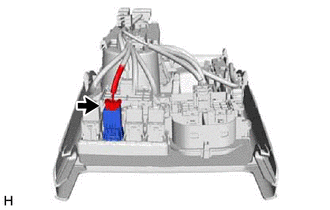

    1. Disconnect the connector from the downhill assist control switch.
      GTY912250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

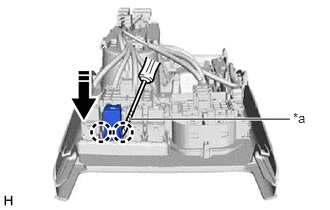

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the downhill assist control switch from the console panel sub-assembly as shown in the illustration.
      GTY859998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
