Removal [10/2022 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE DOWNHILL ASSIST CONTROL SWITCH

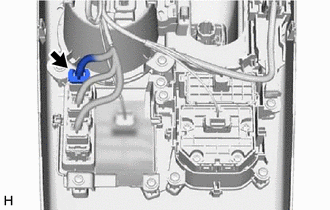

    1. Disconnect the connector from the downhill assist control switch.
      GTY1116207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

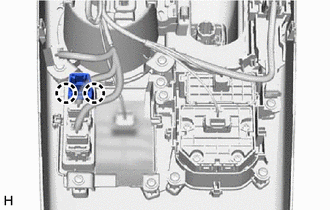

    2. Disengage the 2 claws and remove the downhill assist control switch from the console panel sub-assembly.
      GTY1119106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
