Installation [12/2019 - ]: Procedure

  1. INSTALL REAR SEAT CUSHION LOCK HOOK

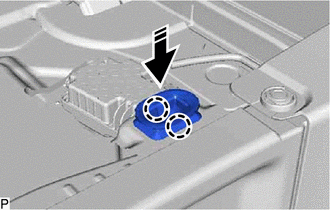

    1. Engage the 2 claws as shown in the illustration to install a new rear seat cushion lock hook.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY875147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR SEAT CUSHION ASSEMBLY
    1. Place the rear seat cushion assembly in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

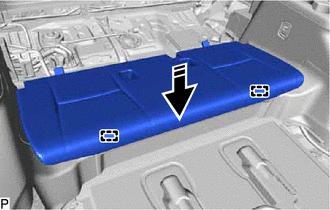

    2. Engage the 2 rear seat cushion frame hooks as shown in the illustration to install the rear seat cushion assembly.
      GTY897712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Confirm that the rear seat cushion assembly is securely installed.

  3. INSTALL REAR SEATBACK ASSEMBLY LH
    1. Place the rear seatback assembly LH in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Engage the guide.

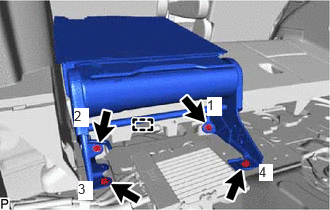

      Fig 1: Rear Seatback Assembly LH Bolts Tightening Sequence
      GTY859401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the rear seatback assembly LH with the 4 bolts.
    4. Tighten the 4 bolts on the rear seatback assembly LH.

      HINT:

      Tighten the bolts in the order shown in the illustration.

      Torque: 36.7 N.m (374 kgf/cm, 27 ft.lbf)

  4. INSTALL REAR SEATBACK ASSEMBLY RH
    1. Place the rear seatback assembly RH in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Engage the guide.

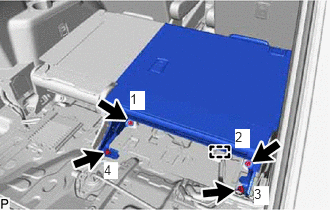

      Fig 2: Rear Seatback Assembly RH Bolts Tightening Sequence
      GTY927026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the rear seatback assembly RH with the 4 bolts.
    4. Tighten the 4 bolts on the rear seatback assembly RH.

      HINT:

      Tighten the bolts in the order shown in the illustration.

      Torque: 36.7 N.m (374 kgf/cm, 27 ft.lbf)

  5. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 1

  6. INSTALL SEAT INNER BELT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. INSTALL DECK SIDE TRIM BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 66 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 64 [10/2022 - ]

  9. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 67 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 65 [10/2022 - ]

  10. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - ]

  11. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 69 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 67 [10/2022 - ]

  12. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 70 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 68 [10/2022 - ]

  13. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 69 [10/2022 - ]
