Reassembly [11/2023 - ]: Procedure

  1. INSTALL POWER SEAT TILT MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. INSTALL POWER SEAT LIFTER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. INSTALL REAR UPPER SEAT TRACK COVER

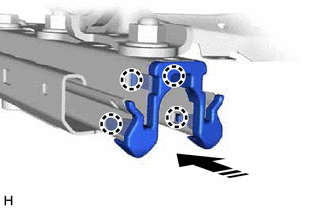

    1. Engage the 4 claws to install the rear upper seat track cover as shown in the illustration.
      GTY789908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for both sides.

  4. INSTALL SEAT TRACK UPPER RAIL COVER

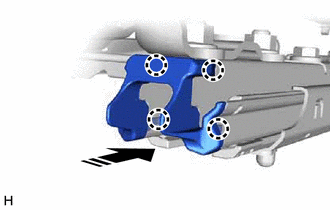

    1. Engage the 4 claws to install the seat track upper rail cover as shown in the illustration.
      GTY778791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for both sides.

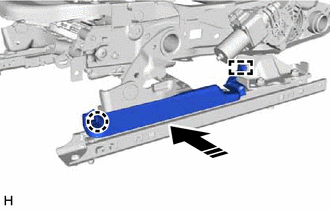

  5. INSTALL FRONT LH SEAT LOWER CUSHION SHIELD
    1. Engage the claw and guide to install the front LH seat lower cushion shield as shown in the illustration.
      GTY859299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER

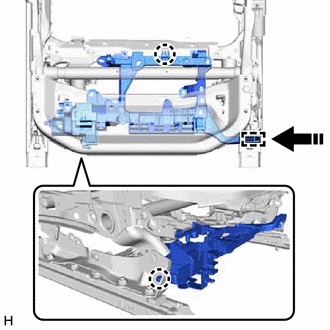

    1. Engage the guide as shown in the illustration.
      GTY854985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the front seat cushion wire harness holder.
    3. Install the 2 screws.
      GTY939468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY
    1. Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.
      GTY542111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT SEAT NO. 2 WIRE LH (for Driver Side)
    1. Engage the claw to install the front seat No. 2 wire LH.
      GTY899049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp and connect the connector.
  9. INSTALL FRONT SEAT WIRE RH (for Front Passenger Side)
    1. Connect each connector and engage each clamp to install the front seat wire RH.
  10. INSTALL FRONT SEAT WIRE
    1. Connect each connector and engage each clamp to install the front seat wire.
  11. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH
    1. for LH Side:
      1. Engage the 2 claws and 2 guides to install the front seat lower cushion shield LH.
        GTY870462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Hook
        *b Guide
      2. Engage the hook.
    2. for RH Side:
      1. Engage the claw and guide to install the front seat lower cushion shield LH.
        GTY886605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Hook
        *b Guide
      2. Engage the hook.
  12. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. for LH Side:
      1. Engage the 4 claws to install the reclining adjuster inside cover LH.
        GTY898546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for RH Side:
      1. Engage the 4 claws to install the reclining adjuster inside cover LH.
        GTY898545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)
    1. Engage the hook.
      GTY798795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seat cushion climate control blower assembly with the 2 bolts.

      Torque: 3.2 N.m (33 kgf/cm, 28 in.lbf)

    3. Connect the connector and engage the wire harness clamp.
      GTY798796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

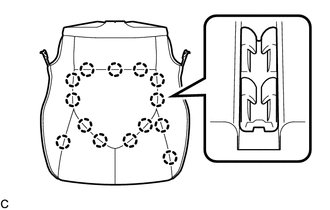

    1. Engage the 14 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.
      GTY759749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT SEAT CUSHION AIRBAG ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 1

  17. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. Engage the 10 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.
      GTY904388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
      1. Engage the clamp.
        GTY904390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
  18. INSTALL FRONT NO. 2 SEATBACK HOOK
    1. Install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.
      GTY574545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT NO. 2 SEATBACK EDGE PROTECTOR
    1. w/o Lumbar Support:
      1. Install the 2 front No. 2 seatback edge protectors to the front seatback spring sub-assembly.
    2. w/ Lumbar Support:
      1. Install the 2 front No. 2 seatback edge protectors to the lumbar support adjuster assembly.
  20. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY (w/o Lumbar Support)
    1. w/ Seatback Felt:
      1. Install the seatback felt to the front seatback spring sub-assembly.
    2. Install the front seatback spring sub-assembly to the front seatback frame sub-assembly as shown in the illustration.
      GTY941634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 2 claws to install the 2 front No. 2 seatback edge protectors to the front seatback frame sub-assembly.
      GTY939601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL FRONT SEAT NO. 2 WIRE (for Driver Side)
    1. w/o Lumbar Support:
      1. Connect the connector.
        GTY940943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the 2 clamps to install the front seat No. 2 wire.
    2. w/ Lumbar Support:
      1. Engage the 2 clamps to install the front seat No. 2 wire.
        GTY899045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT SEAT NO. 2 WIRE (for Front Passenger Side)
    1. Connect the connector (D) and engage the 2 clamps (C) to install the front seat No. 2 wire.
      GTY893381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Climate Control Seat System:
      1. Engage the clamp (A) and connect the connector (B).
  23. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY (w/ Lumbar Support)

    Refer to PROCEDURE - Step 2

  24. INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System (w/ Lumbar Support))
    1. Engage the 2 claws and 2 hooks and install the seatback climate control blower.
      GTY906469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Hook
    2. Connect the connector and engage the wire harness clamp.
  25. INSTALL FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  26. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

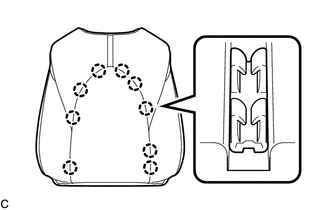

  27. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
    1. Engage the 9 claws to install the separate type front seatback cover to the separate type front seatback pad.
      GTY759747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Install the separate type front seatback cover with pad.
  29. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
    1. Engage the 4 claws to install the 2 front seat headrest support assemblies.
      GTY759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the 2 fasteners.
      GTY574703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Seat Heater System:
      1. Engage the clamp.
        GTY904407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 3 hooks.
      GTY852046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Engage the 4 guides.
      GTY939480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

    3. w/ Seat Heater System:
      1. Connect the connector.
        GTY795970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the clamp.
    4. Engage the clamp.
      GTY759751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connector.
    6. Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.
      GTY759770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Engage the claw first.

    7. Engage the 2 hooks.
      GTY898549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Pass the separate type front seatback cover through the grooves of the reclining adjuster inside covers LH.
      GTY699522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT POWER SEAT SWITCH

    Refer to PROCEDURE - Step 1

  32. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET
    1. Install the seat adjuster shield clamp bracket to the front seat cushion shield with the 2 screws.
      GTY898550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

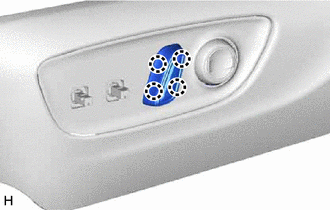

  33. INSTALL RECLINING POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the reclining power seat switch knob.
      GTY898512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

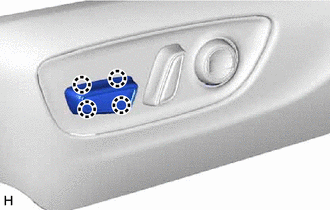

  34. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the slide and vertical power seat switch knob.
      GTY898516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

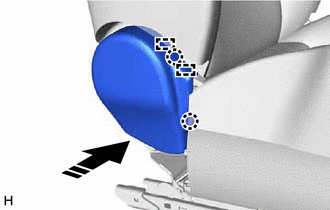

  35. INSTALL FRONT SEAT INNER CUSHION SHIELD
    1. Engage the 2 claws and 2 guides as shown in the illustration.
      GTY855494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the front seat inner cushion shield.
      GTY898554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT SEAT CUSHION SHIELD
    1. Connect the front power seat switch connector.
      GTY898527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

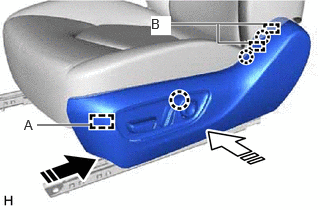

    2. Engage the guide (A) as shown in the illustration.
      GTY850594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    3. Engage the 3 claws and 2 guides (B) as shown in the illustration.
    4. Engage the 2 claws to install the front seat cushion shield.
      GTY898531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL FRONT SEAT FRONT CUSHION SHIELD
    1. Engage the 3 guides.
      GTY898404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

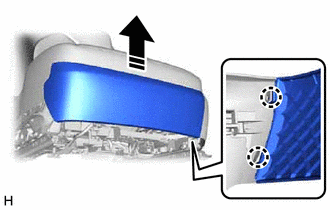

    2. Engage the 2 claws as shown in the illustration.
      GTY932483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

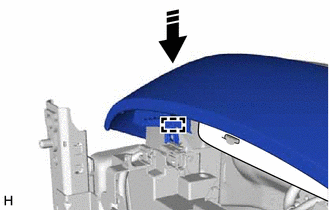

    3. Engage the guide as shown in the illustration.
      GTY861713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the front seat front cushion shield with the clip.
      GTY898403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. GTY542049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the rubber band of the separate type front seatback cover.

  39. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 1

  40. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  41. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  42. INSTALL POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

    Refer to PROCEDURE - Step 1
