Disassembly [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT DOOR VENT SEAL
    1. Remove the 2 front door vent seals.

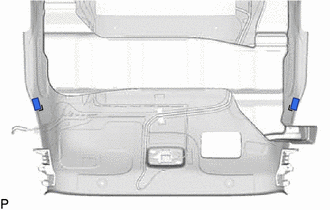

      GTY1016420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INNER ROOF SIDE SEAL (for Panoramic Moon Roof)
    1. Remove the inner roof side seal.

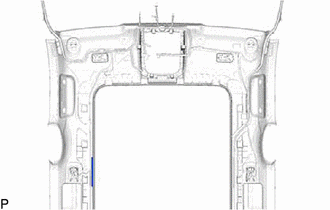

      GTY1016422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Normal Roof)

    Refer to PROCEDURE - Step 6

  4. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Moon Roof)

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Panoramic Moon Roof)

    Refer to PROCEDURE - Step 8

  6. REMOVE REAR WASHER HOSE ASSEMBLY
    1. for Normal Roof:
      1. Remove the adhesive tape from the roof headlining assembly.

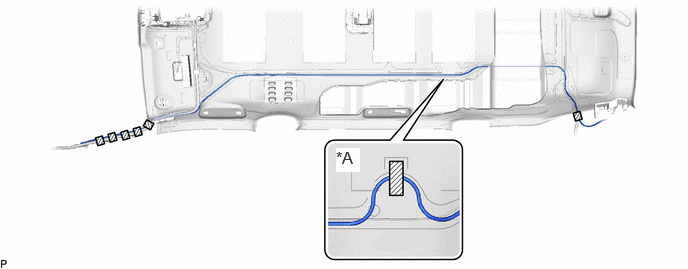

        GTY1115644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Adhesive Tape - -
        Adhesive Tape - -
    2. for Moon Roof:
      1. Remove the adhesive tape from the roof headlining assembly.

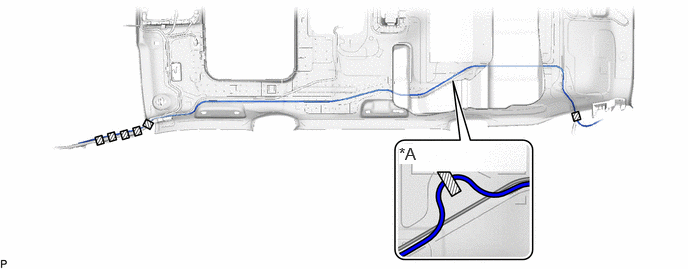

        GTY1109596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Adhesive Tape - -
        Adhesive Tape - -
    3. for Panoramic Moon Roof:
      1. Remove the adhesive tape from the roof headlining assembly.

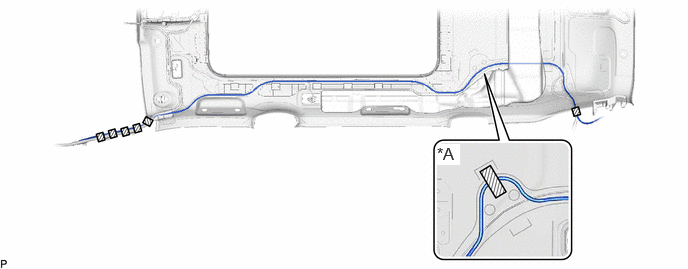

        GTY1118288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Adhesive Tape - -
        Adhesive Tape - -
    4. Remove the rear washer hose assembly from the roof headlining assembly.
  7. REMOVE SPOT LIGHT ASSEMBLY LH (for Panoramic Moon Roof)

    Refer to PROCEDURE - Step 2

  8. REMOVE SPOT LIGHT ASSEMBLY RH (for Panoramic Moon Roof)

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE

    Refer to PROCEDURE - Step 2

  10. REMOVE NO. 3 ROOF HEADLINING SUPPORT (except Panoramic Moon Roof)
    1. Remove the No. 3 roof headlining support.

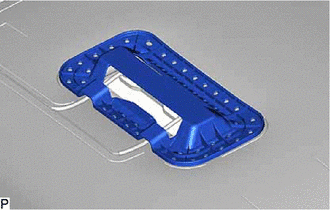

      GTY940535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 ROOF WIRE (for Normal Roof)
    1. Remove the adhesive tape from the roof headlining assembly.

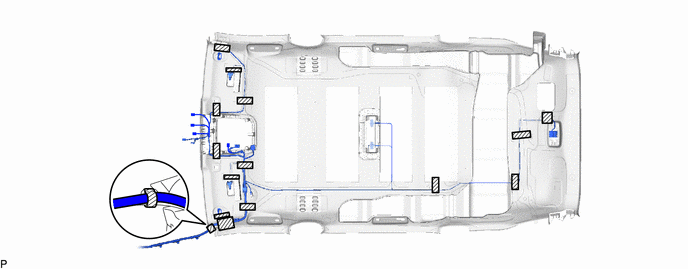

      GTY1117193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Turn the 2 visor connectors counterclockwise approximately 45° and remove them from the roof headlining assembly.

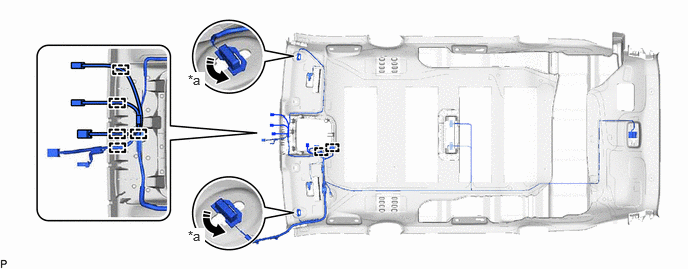

      GTY1114148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° - -
      Rotation Direction - -
    3. Disengage each clamp.
    4. Remove the No. 1 roof wire from the roof headlining assembly.
  12. REMOVE NO. 1 ROOF WIRE (for Moon Roof)
    1. Remove the adhesive tape from the roof headlining assembly.

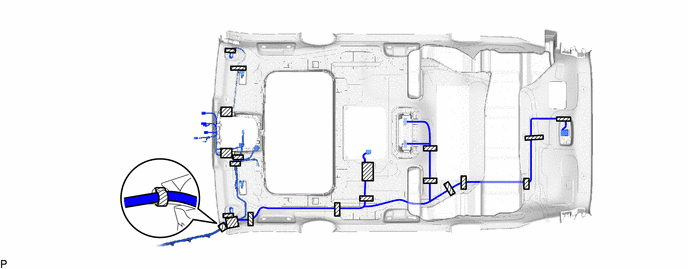

      GTY1113364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Turn the 2 visor connectors counterclockwise approximately 45° and remove them from the roof headlining assembly.

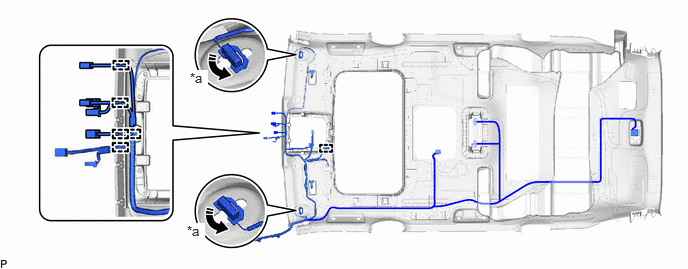

      GTY1117495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° - -
      Rotation Direction - -
    3. Disengage each clamp.
    4. Remove the No. 1 roof wire from the roof headlining assembly.
  13. REMOVE NO. 1 ROOF WIRE (for Panoramic Moon Roof)
    1. Remove the adhesive tape from the roof headlining assembly.

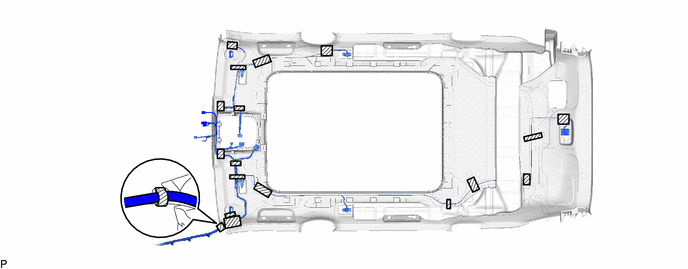

      GTY1115993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Adhesive Tape - -
    2. Turn the 2 visor connectors counterclockwise approximately 45° and remove them from the roof headlining assembly.

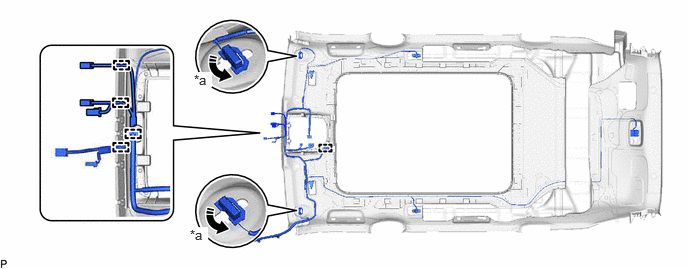

      GTY1113290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° - -
      Rotation Direction - -
    3. Disengage each clamp.
    4. Remove the No. 1 roof wire from the roof headlining assembly.
