Installation [12/2019 - ]: Procedure

  1. INSTALL REAR COMBINATION LIGHT CORD
    1. Connect the connector to install the rear combination light cord.
  2. INSTALL REAR BUMPER UPPER RETAINER

    Refer to PROCEDURE - Step 6 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]

  3. INSTALL REAR COMBINATION LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 8 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

  4. INSTALL REAR BUMPER ASSEMBLY

    Refer to INSTALLATION [12/2019 - 09/2020] , or refer to INSTALLATION [09/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - ]

  5. INSTALL REAR COMBINATION LIGHT COVER

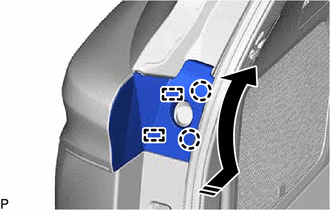

    1. Engage the 2 claws and 2 guides as shown in the illustration.
      GTY912697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

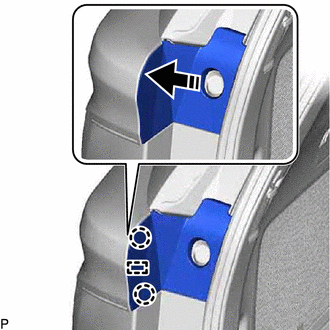

    2. Engage the 2 claws and guide to install the rear combination light cover as shown in the illustration.
      GTY900952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
