Installation [12/2019 - ]: Procedure

  1. INSTALL LICENSE PLATE LIGHT BULB
    1. Install the license plate light bulb.
    2. Engage the 2 claws to install the license plate light lens.
      GTY870798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LICENSE PLATE LIGHT PACKING
    1. Install a new license plate light packing.
  3. INSTALL LICENSE PLATE LIGHT ASSEMBLY

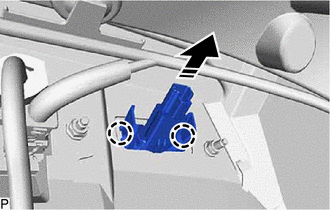

    1. Engage the 2 claws to install the license plate light assembly as shown in the illustration.
      GTY945636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  4. INSTALL BACK DOOR FINISH PANEL COVER

    Refer to PROCEDURE - Step 27

  5. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 35

  6. INSTALL BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 36

  7. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.
