Removal [12/2019 - ]: Procedure

  1. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE TURN SIGNAL SWITCH

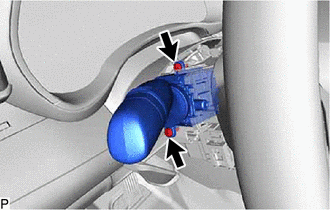

    1. Remove the 2 screws.
      GTY923230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

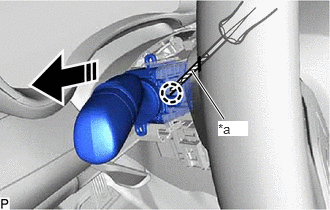

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
      GTY935581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
      NOTE:

      If the claw is pulled with excessive force, it may break.
