Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE TURN SIGNAL SWITCH

    See step  3

  4. REMOVE STEERING WHEEL SWITCH HOUSING

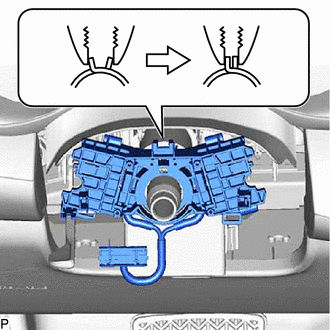

    1. Using pliers, expand the clamp as shown in the illustration.
      GTY944948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

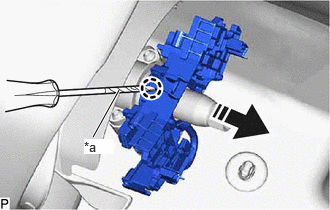

    2. While holding the clamp expanded, using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the steering wheel switch housing as shown in the illustration.
      GTY845394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
