Installation [12/2019 - ]: Procedure

  1. INSTALL STEERING WHEEL SWITCH HOUSING
    1. When reusing the steering wheel switch housing:

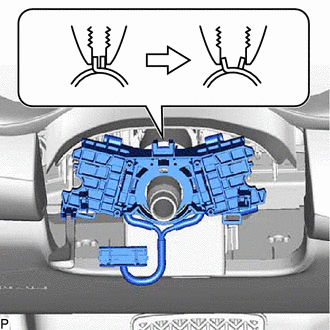

      1. Using pliers, expand the clamp and temporarily install the steering wheel switch housing as shown in the illustration.
        GTY944948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

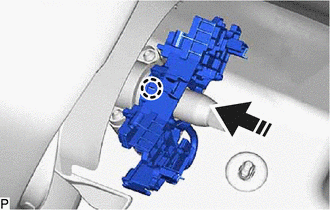

      2. While holding the clamp expanded, engage the claw as shown in the illustration.
        GTY926763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      3. Release the clamp to install the steering wheel switch housing as shown in the illustration.
        GTY923253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. When installing a new steering wheel switch housing:

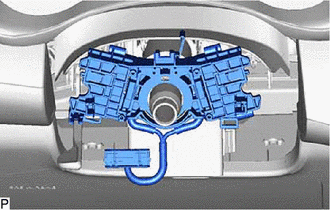

      1. Temporarily install the steering wheel switch housing.
        GTY923252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

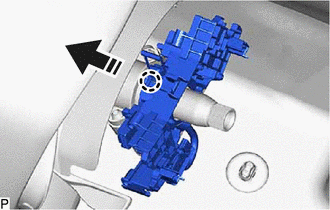

      2. Engage the claw as shown in the illustration.
        GTY869150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

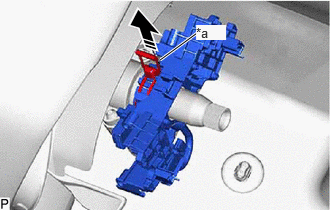

      3. Remove the pin to install the steering wheel switch housing as shown in the illustration.
        GTY864742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Pin
        Remove in this Direction
  2. INSTALL TURN SIGNAL SWITCH

    See step  1

  3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
