Removal [12/2019 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

  2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

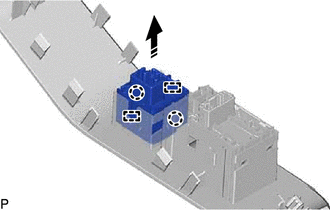

    1. Disengage the 2 claws and 2 guides to remove the door control switch assembly as shown in the illustration.
      GTY865608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
