Installation [12/2019 - ]: Procedure

  1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

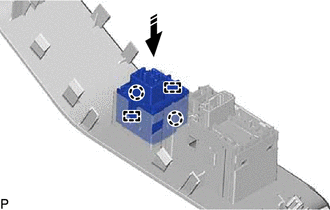

    1. Engage the 2 guides and 2 claws to install the door control switch assembly as shown in the illustration.
      GTY870870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 43 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 43 [10/2022 - ]
