Installation [12/2019 - 10/2022]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

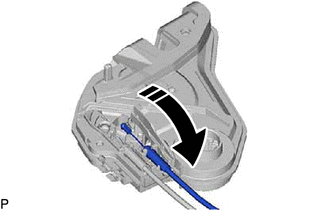

- INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

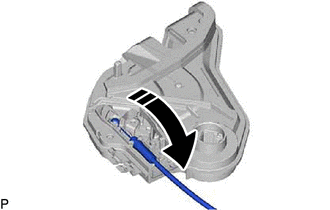

- INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

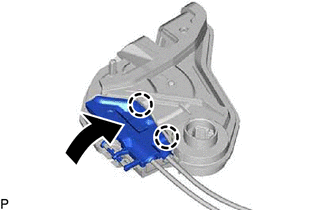

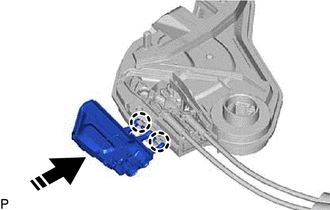

- INSTALL REAR DOOR LOCK COVER SUB-ASSEMBLY
- INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY NOTE:
- When reusing a removed rear door lock with motor assembly, replace the door lock wiring harness seal with a new one.
- Do not allow grease or dust to adhere to the door lock wiring harness seal installation surface.
- Reusing a door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water ingress. This may result in a malfunction of the rear door lock with motor assembly.
- Apply MP grease to the sliding parts of the rear door lock with motor assembly.
- When reusing the rear door lock with motor assembly:
- Install a new door lock wiring harness seal to the rear door lock with motor assembly.

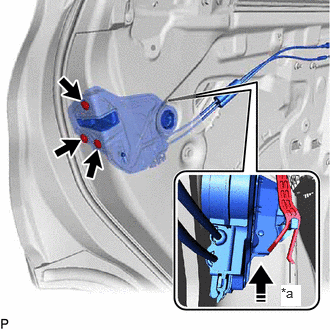

- Connect the rear door lock with motor assembly to the release plate of the rear door outside handle frame sub-assembly as shown in the illustration, and set it to the rear door panel.
*a Release Plate
Install in this Direction HINT:
Make sure that the release plate of the rear door outside handle frame sub-assembly is securely connected to the rear door lock with motor assembly.
- Using a T30 "TORX" socket wrench, install the rear door lock with motor assembly with the 3 screws.
Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)
- INSTALL REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 28
- INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 41
- INSTALL REAR DOOR INSIDE HANDLE BEZEL
Refer to PROCEDURE - Step 42
- INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 43
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for 2GR-FKS:
Refer to PROCEDURE - Step 2
for A25A-FXS:
Refer to PROCEDURE - Step 2
- INSTALL BATTERY SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 3
- INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [12/2019 - ]
- INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [12/2019 - ]
